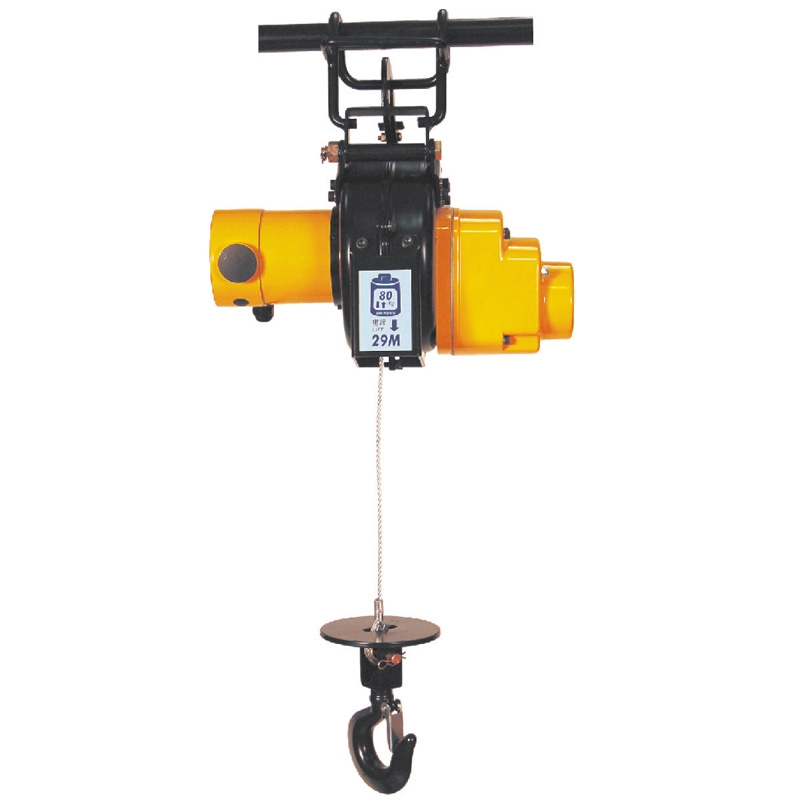

•Mini winch is compact and lightweight design allow mounting convenience.
•When rope touches the over-winding limit lever, hoisting is automatically stopped.
•An over reverse-winding limit lever stops the motor when the rope is reverse winging.
•Double safety brake devices, dynamic & electromagnet brake perform instant & safety brake.
•It operates on household power source.

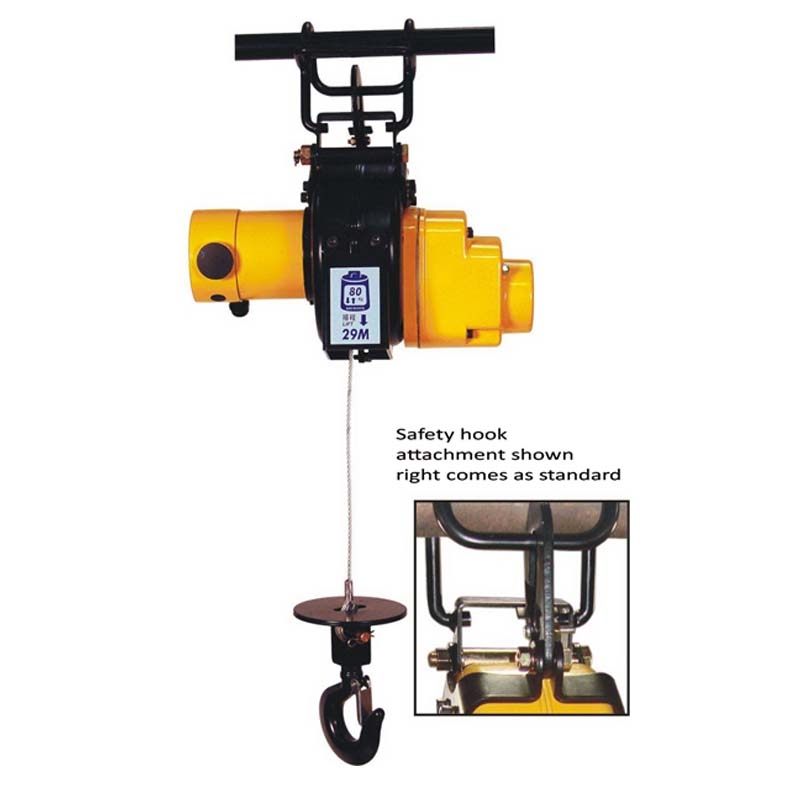

•360° universal joint saddle hook with safety latch.
•Plug-in cords allow portability with ease.
|Lifting speed m/min||First layer||18|
|Motor kw × A||110V||0.8×8|
|Braking methods||For motor||Electromagnetic brake|
|For gear||Mechanical brake|
|Lifting height m||29|
|Wire rope Φ mm×m||4×30|
|Net weight kg||10|
|Gross weight kg||19|
Winches are not to be used for the moving of persons.
Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.
Wire ropes are not included under warranty.
Wire rope 4mm × 30m
Weight hook K-08
Switch cord 2mm² × 5C × 7m
Power lead 2mm² × 3C × 4.5m
Pendant switch K-160
