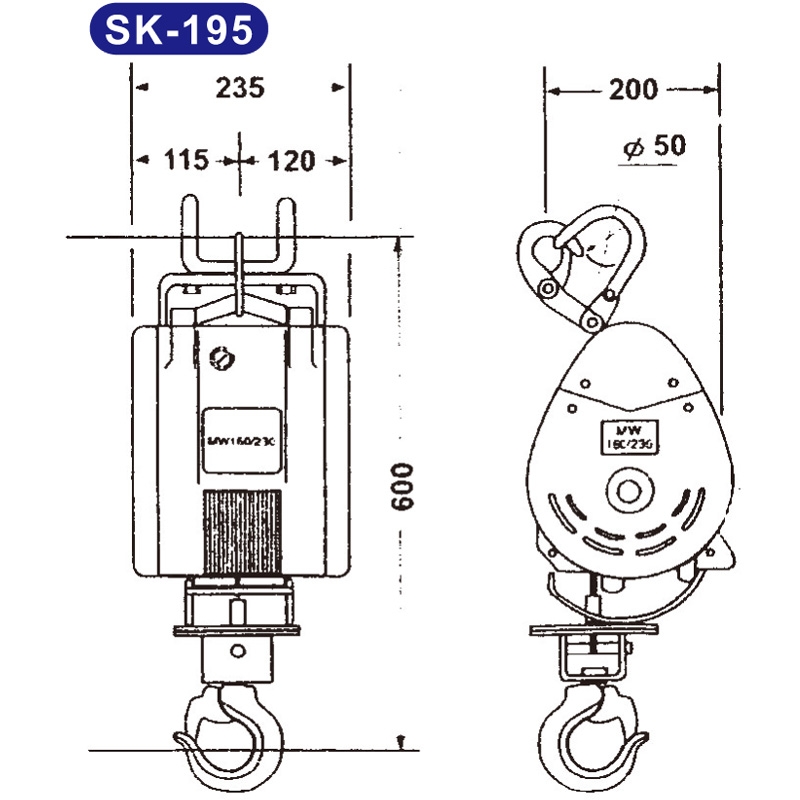

Product Name : SK-195
Product Description
110V or 220V-240V×1ph AC
Product Introduction

Features:

Lightweight and compact design allows easy installation

Automatic upper limit switch when rope disc touches the limit arm, hoisting is automatically stopped

Dynamic and mechanical brake provides instant and safe braking

Can operate on standard domestic power supply

Sensor arm automatically stops motor if the wire tope is under-wound

Wire rope comes with a 360° weight hook with safety latch


Specifications
Capacity(kg) 195
Lifting speed m/min First layer 13
Top layer 18
Motor kw × A 110V 1.25×12
220V-240V 1.25×6
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Lifting height m 29
Wire rope Φ mm×m 5×30
Net weight kg 17
Gross weight kg 24

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope 5mm × 30m

Weight hook K-11

Switch cord 2mm² × 5C  × 7m

Power lead 2mm² ×  3C × 4.5m

Pendant switch K-160
