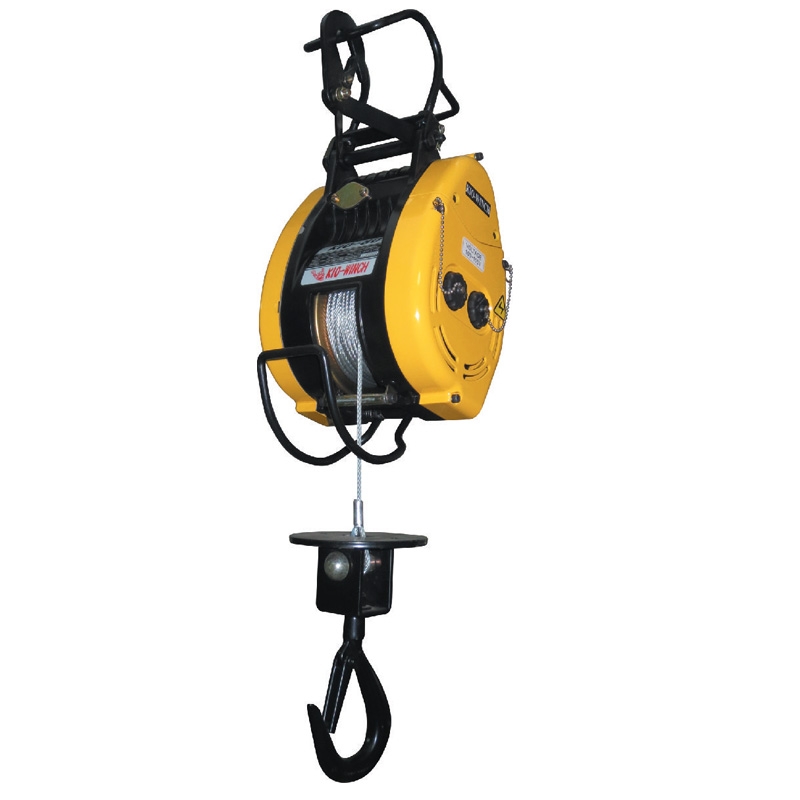

Product Name : KIO-80
Product Description

110V or 220V-240V×1ph AC

Product Introduction

Features:

Lightweight and compact design allows easy installation

Upper hoisting limit switch

Wire rope toches the limit arm, hoisting is automatically stopped

Lower hoisting limit switch

Sensor arm automatically stops motor if the wire rope is under-wound

Mechanical ratchet brake

Single ratchet pawl brake provides instant and safe braking

Can operate on standard domestic power supply

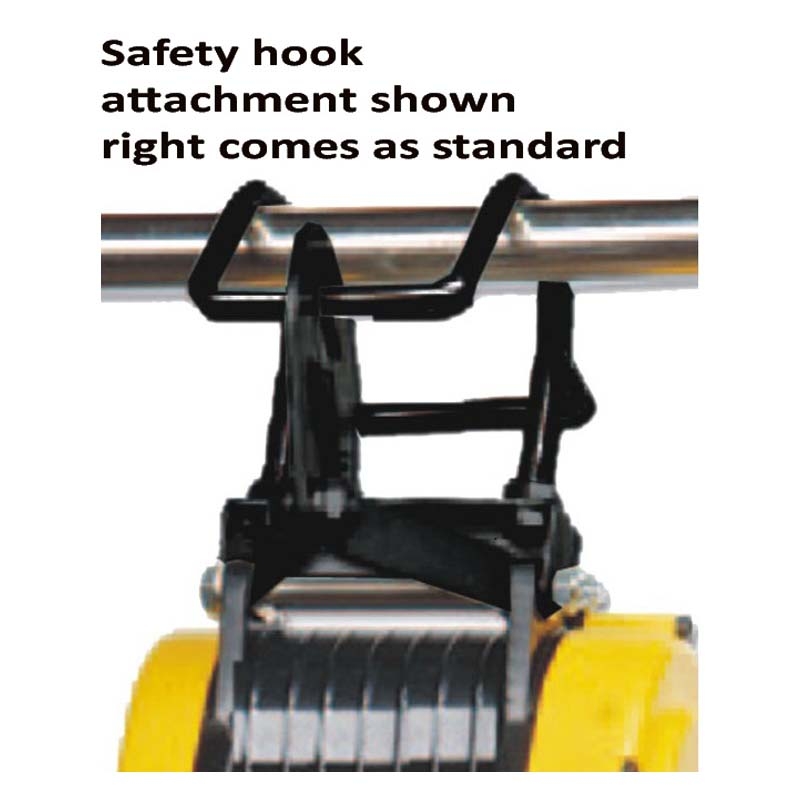

Wire rope comes with a safety-latch weight hook

Emergency stop function switch is available upon request

Specifications
Capacity (kg) 80
Lifting speed m/mm First layer 18
Top layer 30
Motor kw × A Type Series Wound
Output, kw × Amp 1ph,110V 0.8kw×8A
1ph,220V-240V 0.8kw×4A
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Maximum Lifting height m 23
Wire rope Φ mm×m 4×24
Net weight kg 9
Gross weight kg 18

Solution for Remote contrl:

1. Remote control, k-613

 Switch cord 1.25 mm² × 6C × 7m

 Pendant switch k-613

2. Remote control, k-613A

 Switch cord 1.25mm² × 6C × 7m

Note:

1.Above performance ratings are based on 50Hz supply.

(60 Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)
