GRV-500L

Reduce 24V  Pendant Control

FEATURES:
•AC motor for maximum torque,designed specifically for winch applications.
•All models are supplied with galvanised steel cable and incorporate a detachable 24V pendant control.
•Thermal overload protection.
• Equipped with Solenoid.

Model	Lifting Capacity	Speed	Motor rating IP44 kw/poles	Maximum Lifting Height m	Wire Rope Ømm×m	Gross Weight
GRV-500L	500KG	18-23m/min	1.8×4	58	7×60	72KG

Special Equipment:
•Cable Length:20M Emergency Switch

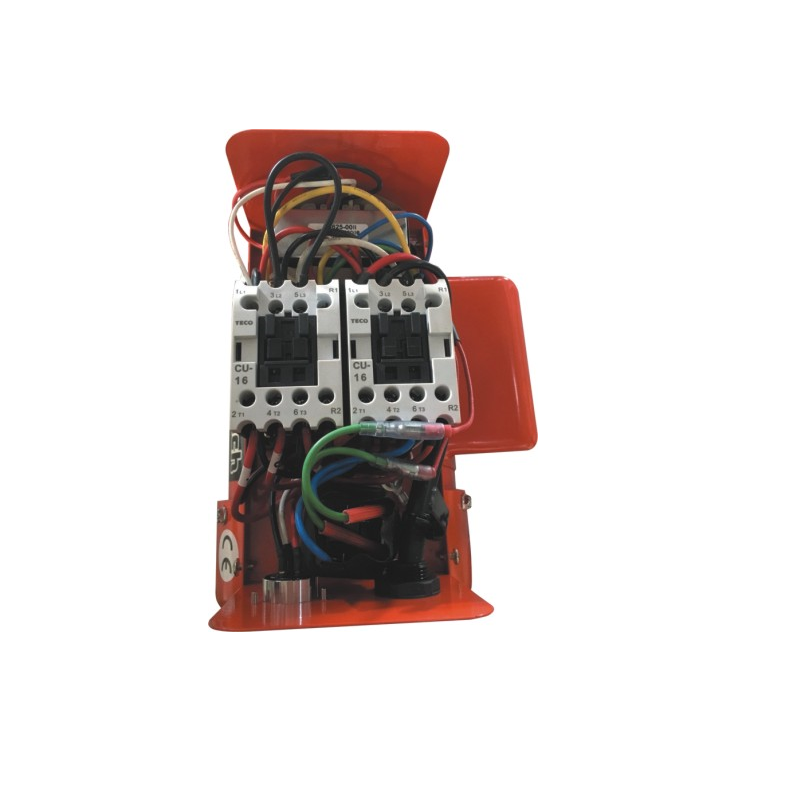

•Installation of Solenoid Also equipped with reduce 24V pendant control
•Thermal overload protection
