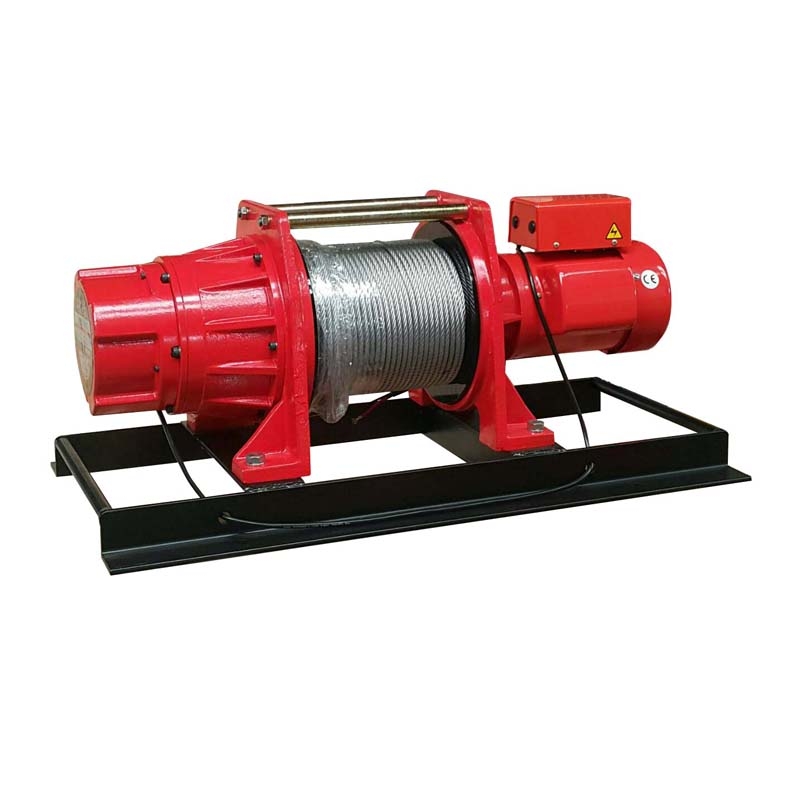

Product Name : GG-501
Product Description

220V-240V×1ph AC

Product Introduction

Features:

Electromagnetic spring-applied fail safe brake

Heavy duty high efficiency ball bearing on all running surfaces

Planetary gearing for maximum mechanical efficiency

Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quiet running

Quiet running

Emergency stop function switch is available upon request

Low voltage control ass’y is available upon request

Specifications
Capacity(kg) 500
Lifting speed m/min First layer 12
Top layer 18
Motor rating IP44 type Induction
Output, Kw/poles 1.8×4
3ph, 380V-440V
Maximum lifting height m 58
Braking methods Electromagnetic
Wire rope Φ mm×m 9×60
8×100
Drum dimension mm Length 240
Drum Dia 140
Flange Dia 280
Mounting bolt pattern mm 400×325
Net weight kg 120
Gross weight kg 148

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Solution for remote control:

1.Remote control K-213 assembly

   Switch cord 3.5mm² × 5C  × 3m

   Pendant switch K-213

2.Remote control K-213A assembly

   Switch cord 3.5mm² × 5C  × 3m

Note:
1.Above performance ratings are based on 50HZ supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%)
