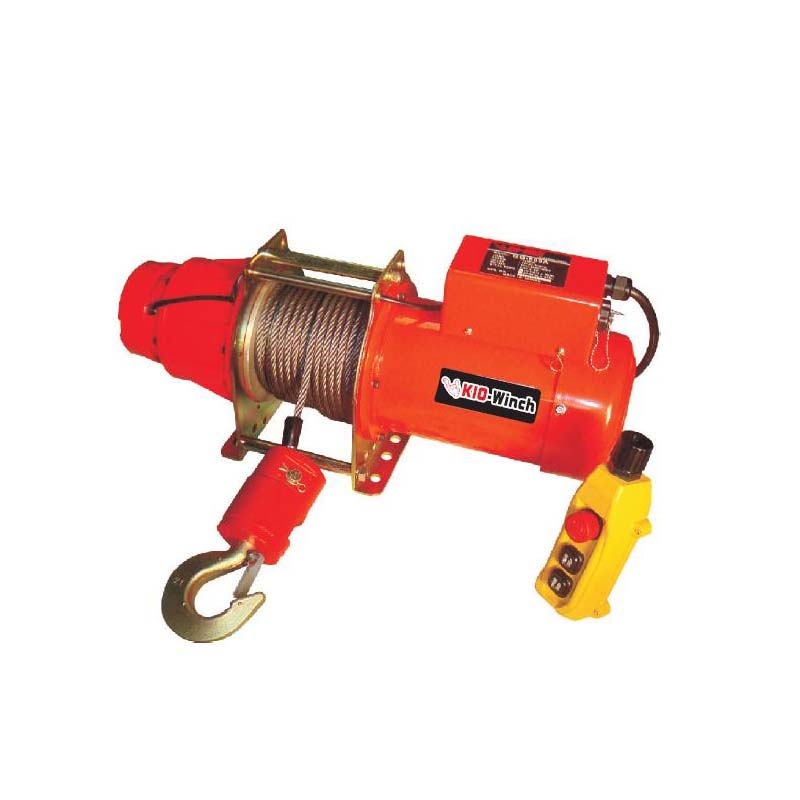

Product Name : GG-500
Product Description

220V-240V×1ph AC ; 220V-380V-440V×3ph AC

Product Introduction

Features:

Positive retention of wire rope on to drum

Electromagnetic spring-applied fail safe brake

Heavy duty high efficiency ball bearing on all running surfaces

Planetary gearing for maximum mechanical efficiency

Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quietrunning



Specifications
Capacity(kg) 500
Lifting speed m/min First layer 18
Top layer 23
Motor rating IP44 Kw/poles 1.8×4
Maximum lifting height m 29
Wire rope Φ mm×m 8×30
Drum dimension mm Width 210
Drum Dia 79
Flange Dia 169
Mounting bolt pattern mm 255×165
Net weight kg 62
Gross weight kg 65

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope 8mm × 30m

Weight hook K-17

Switch cord 3.5mm² × 5C  × 3m

Power lead 3.5mm² ×  3C × 85cm and industry plug

Pendant switch K-213



Optin Accessories:

Remote control K-213A assembly
