Product Name : GG-2060
Product Description

220V-380V-440V×3ph AC



Product Introduction

Features:

Heavy duty high efficiency ball bearings on all running surfaces

Electromagnetic spring-applied fail safe brake

Planetary gearing for maximum mechanical efficiency

Fabricated steel drum

Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quietrunning

Supplied on steel base plate ready to mount

Specifications
Capacity(kg) 2000
Lifting speed m/min First layer 12
Top layer 19
Motor hp × poles 5×6
Maximum lifting height m 49
Wire rope Φ mm×m 12×50
Net weight kg 220
Gross weight kg 250

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope w/safety hook

Switch cord 1.25mm² × 3C  × 10m

Power lead 14mm² ×  4C × 1m

Pendant switch K-81

Base plate



Optin Accessories:



Remote control K-81A assembly

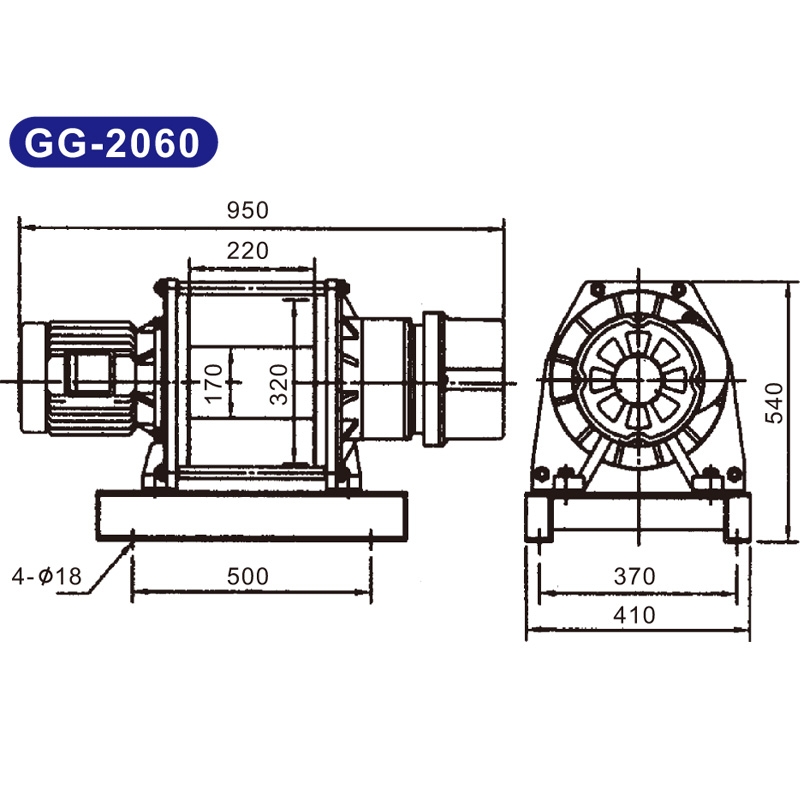

DIMENSIONS MM
Model Mounting bolt pattern D E I M K R
A B C
GG-2060 410 540 950 500 370 320 220 170 4-Φ18
