GG-200

Features:
•Positive retention of wire rope on to drum
•Electromagnetic spring-applied fail safe brake
•Heavy duty high efficiency ball bearing on all running surfaces
•Planetary gearing for maximum mechanical efficiency
•Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quietrunning

Specifications
Capacity(kg)		200
Lifting speed m/min	First layer	12
	Top layer	18
Motor rating IP44	Kw/poles	0.6×4
Maximum lifting height m		29
Wire rope Φ mm×m		6×30
Drum dimension mm	Width	110
	Drum Dia	94
	Flange Dia	154
Net weight kg		31
Gross weight kg		33

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope 6mm × 30m

Weight hook K-14

Switch cord 2mm² × 5C  × 3m

Power lead 3.5mm² ×  3C ×  85 cm and industry plug

Pendant switch K-213



Optin Accessories:

Remote control K-213A assembly

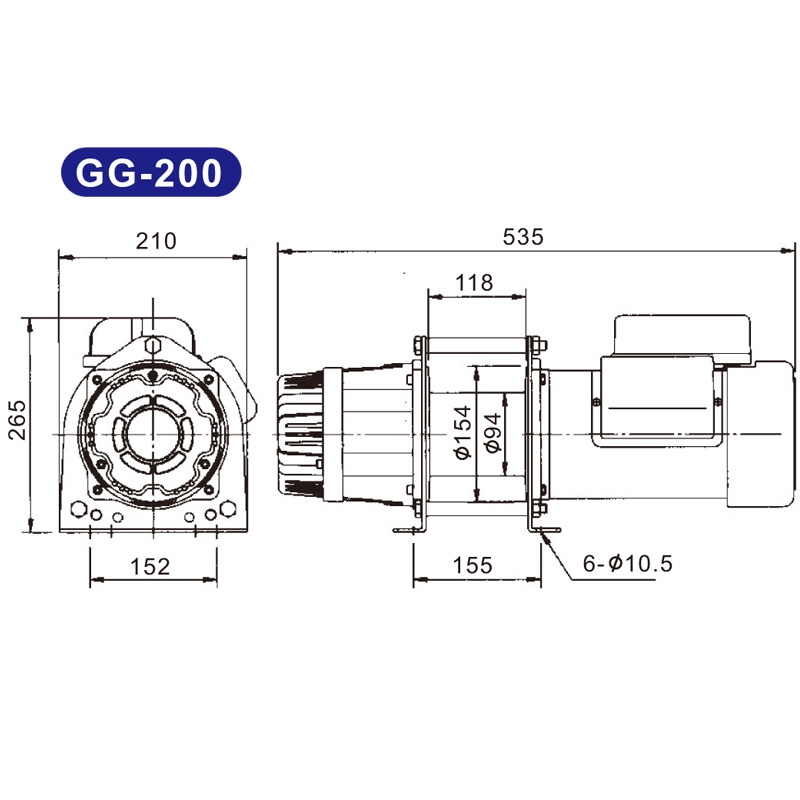

DIMENSIONS MM
Model	Mounting			C	D	E
	A	B	Holes
GG-200	155	152	6Φ-10.5	265	210	535
