Product Name : CW-1000
Product Description
220V-380V-415V-440V×3ph AC
Product Introduction

Brake

Operated by powerful pull rotor using magnetic force, it is cone type brake. It has brake lining clearance adjustent function that maximize the lifetime of brake lining.



Load Chain

G80 load chain is case hardened and has a high resistence to wear and corrosion.

Longer lifts are available per requirement.

Breaking load limit with more than 5 times of rated load.

Use Japanese chain F.E.C



Hooks

Load hook is forged carbon steel hook with heavy-duty hook latch. Thrust bearing in hook allows 360° rotation to prevent twisting of load chain. Top Hook, for hook suspended hoists is rigid.



Push Button control

Compact design to enable one-handed operation Rated IP64 protection.

Emergency stop button is included. Push button cable has strain relief to prevent cable damage.



Load sheave / chain guide

Full floating chain guide assures proper engagement of chain on load sheave.

Features 4 or 5 pockets for better distribution of the load.



Gear box / Oil Lubrication

Special clutch box-automatically switch to dry-run for over load (Exceeding maximum or minimal limit ) and stop the up and down operation.



Hevy-Duty Hoist Motor

The hoist motor is high torque design and is rated 30-minute duty. Class b motor insulation and standard thermal motor protection is included.



FEATURE:

The chain style electric hoist with the most compact body design.

Special clutch with over-load, upper and lower limit, as well as automatic spin, stop ascending and descending functions.

Use of imported ultra chain with abrasion resistant copper alloy at safety factor greater than 6.

The power brake is accurate and safe. The machine structure is simple, easy to dismantle and provides a very low failure rate.

The hook can rotate360° and is provided with an anti-slip safety clip.


SPECIFICATIONS (H) In quotes means lift measure
Model Capacity (ton) Lift (M) Hoisting Speed (m/min) Hoisting Motor (kw) Chain Dia. *Pitch Chan Falls Lift Control Voltage Power Source Approx. Weight(kg)
50hz 60hz
CW-1000 1 3(6) 4.8 6 1 Φ7.1×20.2 1 24V 3Φ 220/380/415/440V 50/60HZ 38(32)

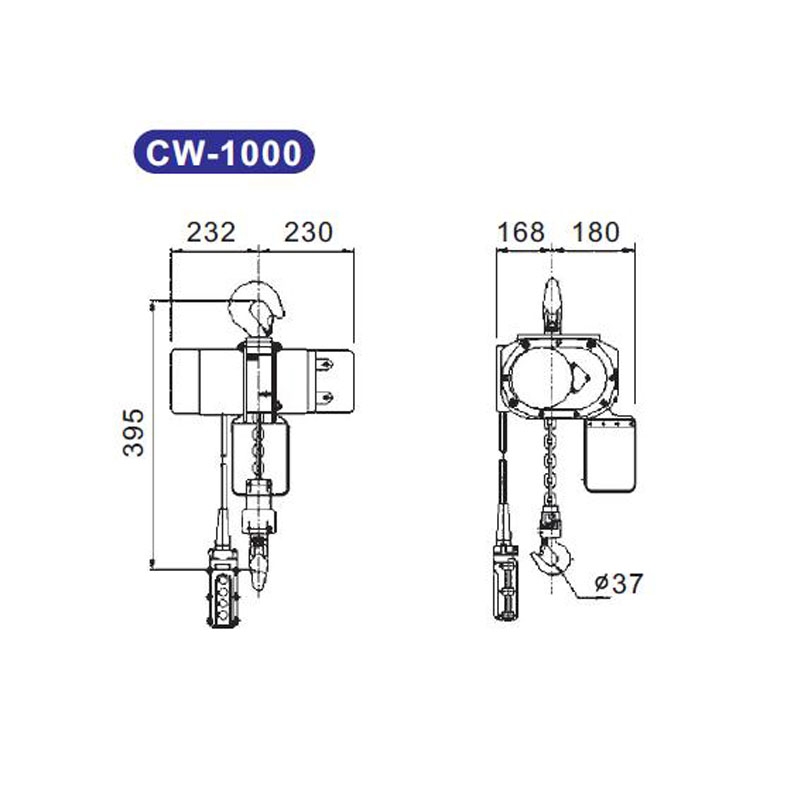

Model A B C D H Φd
Approx Dimension (MM)
CW-1000 232 230 168 180 395 37
