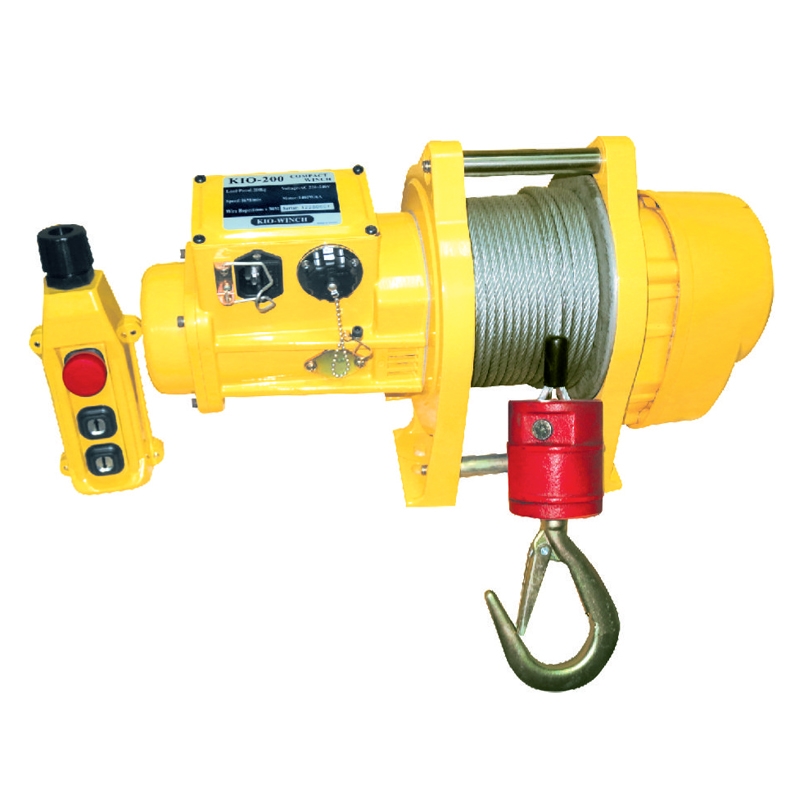

Product Name : CK-200
Product Description

110V or 220V-240V×1ph AC

Product Introduction

Features:

Lightweight and compact design for easy installation

Dynamic and mechanical brake provides instant and safe braking

Operates on standard household power supply

Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings

Specifications
Capacity(kg) 200
Lifting speed m/min First layer 11
Top layer 16
Motor KW × A Type Series wound
110V 1.4×12
220V-240V 1.4×6
Maximum lifting height m 29
Braking methods For motor Electromagnetic brake
For gear Mechanical brake
Wire rope Diameter mm 6
Length m 30
Construction 6×19
Drum dimension mm Width 97
Drum Dia 95
Flange Dia 190
Mounting bolt pattern mm 94×140
135×150
Net weight kg 30
Gross weight kg 32

Warning:

Winches are not to be used for the moving of persons.



Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.



Standard Accessories:

Wire rope 6mm × 30m

Weight hook K-14

Switch cord 2mm² × 6C  × 6m

Power lead 2mm² ×  3C × 4.5m

Pendant switch K-613



Optin Accessories:

Remote control K-613A assembly

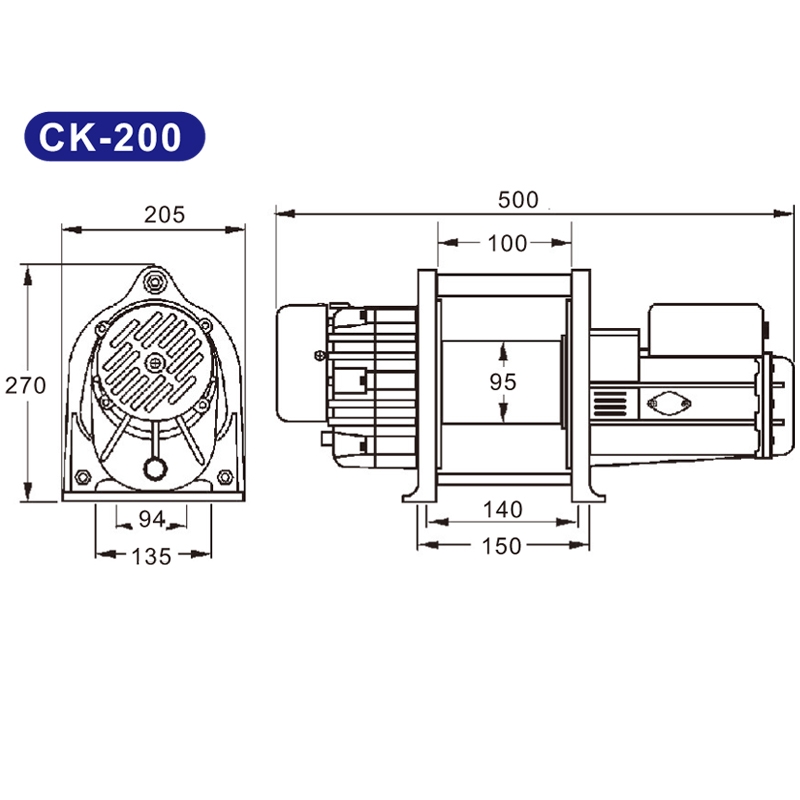

DIMENSIONS MM
Model A B C D E F G H I
CK-200 205 270 94 135 490 100 95 140 150
