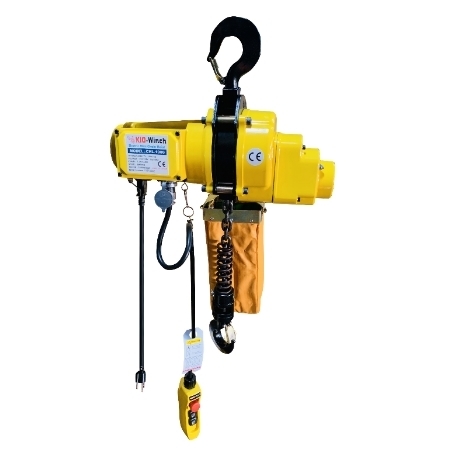

Product Name : CHLW-1000
Product Description
< 110V or 220-240V ×1PH AC >
Product Introduction

Features
1.Wired/Wireless Remote Control Two Types

Equipped with wired and wireless remote control, and safety device can make sure only one type of signals can be accepted at one time.
2.Friction Clutch
   Special clutch box-automatically switch to dry-run for over load (Exceeding maximum or minimal Limit ) and stop the up and down operation to protect machine   and operator.
3.Braking
   Dual braking system combines mechanical and electromagnetic braking, provide instant and safe service.
4.Load Sheave
   Full floating chain guide assures proper engagement of chain on load sheave.

5. Load Chain: Use Japanese chain F.E.C



Usage:

Fit for various workplace applications, such as general factories, warehouse construction, plumbing, and agriculture industries.

Designed for unique rigging applications encountered at small venues, lightweight, quiet ,and portable. Operates on 110V-120V or 220V-230V, which means you can plug it in just about anywhere.

SPECIFICATIONS

Model

Load

(kg)

Speed

(m/min)

Motor

(W)

Voltage

Lift

Chain

(Ø mm x m)

Braking methods

Reversal

Chain Falls Line

NW

(Kg)

GW

(Kg)

CHLW-1000

1000

4

1800

110V or 220V-240V

50/60HZ

3(6)

Ø7.1 x 20.2

Electromagnetic &  mechanical brake

30%ED

1

26

29
