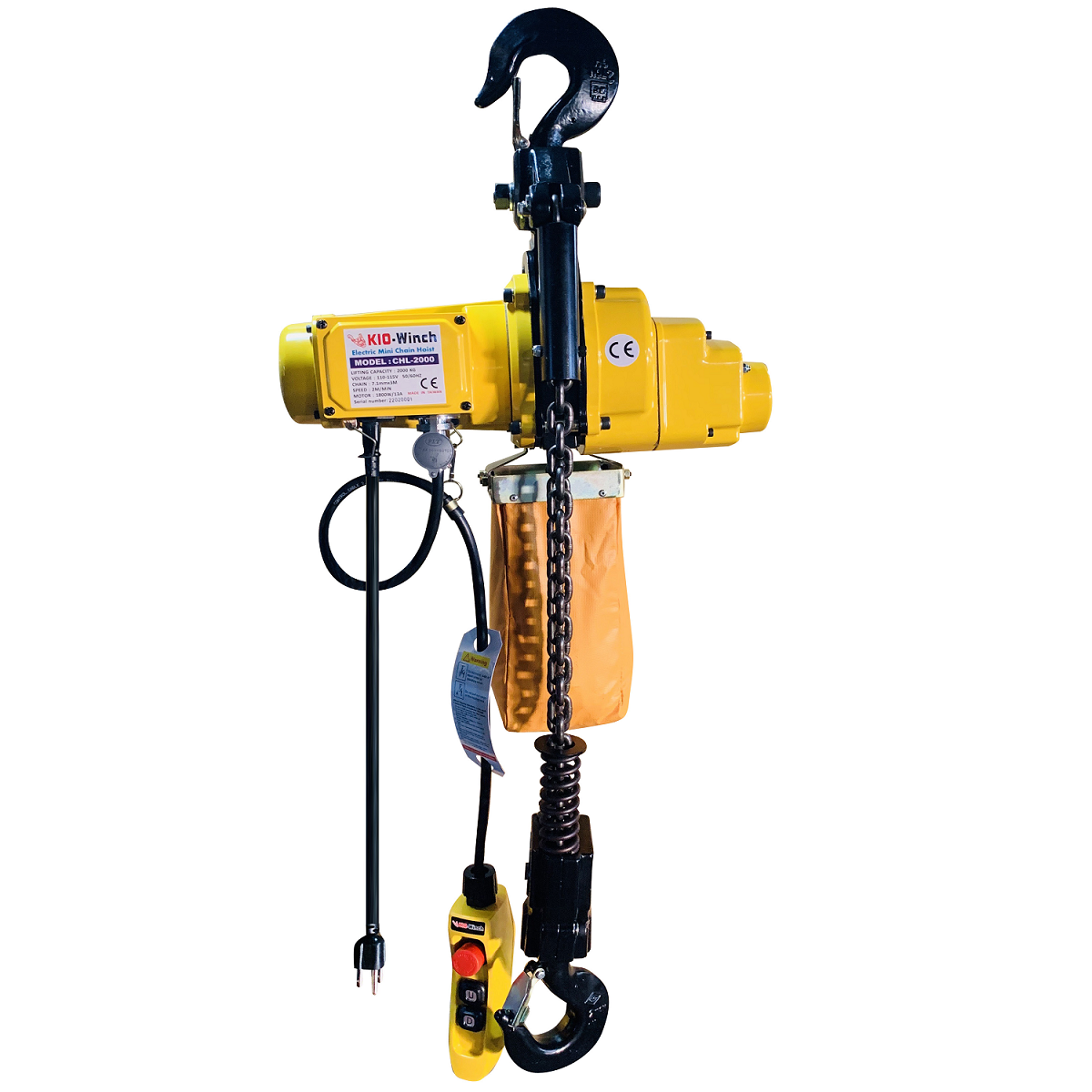

CHL-2000

Load Chain

G80 load chain is case hardened and has a high resistance to wear and corrosion.

Longer lifts are available per requirement.

Breaking load limit with more than 5 times of rated load.

Use Japanese chain F.E.C

Hooks

Load hook is forged carbon steel hook with heavy-duty hook latch, Thrust bearing in hook allows 360° rotation to prevent twisting of load chain. Top Hook, for hook suspended hoists is rigid.

Push Button Control

Compact design enables one-handed operation. Rated IP64 protection.

Emergency stop button is included. Push button cable has strain relief to prevent cable damage.

Load sheave / chain guide

Full floating chain guide assures proper engagement of chain on load sheave.

Features 4 or 5 pockets for better distribution of the load.

Heavy duty hoist motor

Specially designed mini-brush motor that has a long lifetime and low shakiness allows for high speed operation.

Gear box / Oil Lubrication

Special clutch box-automatically switch to dry-run for over load (Exceeding maximum or minimal Limit ) and stop the up and down operation.

Braking

Dual braking system combines mechanical and electromagnetic braking, provides instant and safe service.

Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.

Chain bag: The vinyl chain bag container is provided as standard with hoist.

Switch: Simply layout of the control with 3M power cable as standard and emergency stop as optional.

Usage:

Fit for various workplace applications, such as general factories, warehouse construction, plumbing, and agriculture industries.

Designed for unique rigging applications encountered at small venues, lightweight, quiet ,and portable. Operates on 110V-120V or 220V-230V, which means you can plug it in just about anywhere
