G80 load chain is case hardened and has a high resistence to wear and corrosion.
Longer lifts are available per requirement.
Breaking load limit with more than 5 times of rated load.
Use Japanese chain F.E.C

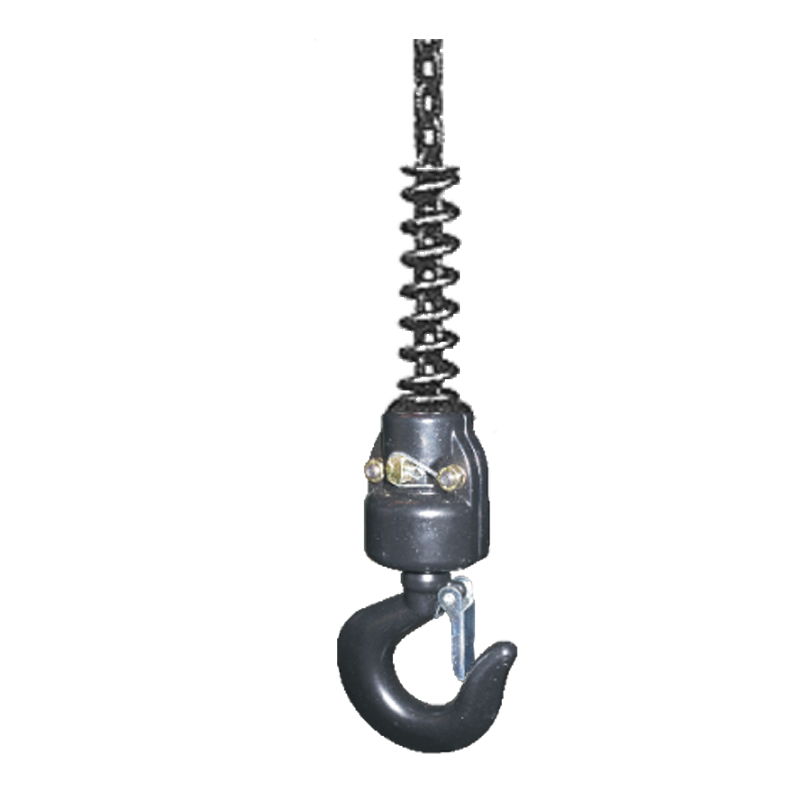

Load hook is forged carbon steel hook with heavy-duty hook latch, Thrust bearing in hook allows 360° rotation to prevent twisting of load chain. Top Hook, for hook suspended hoists is rigid.

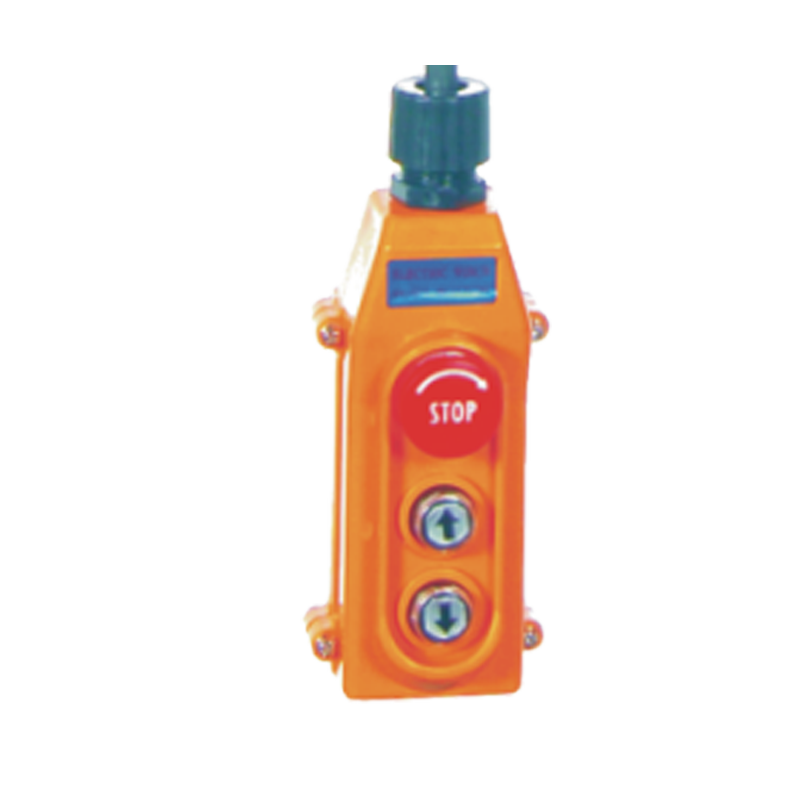

Push Button Control
Compact design to enable one-handed operation. Rated IP64 protection.
Emergency stop button is included. Push button cable has strain relief to prevent cable damage.

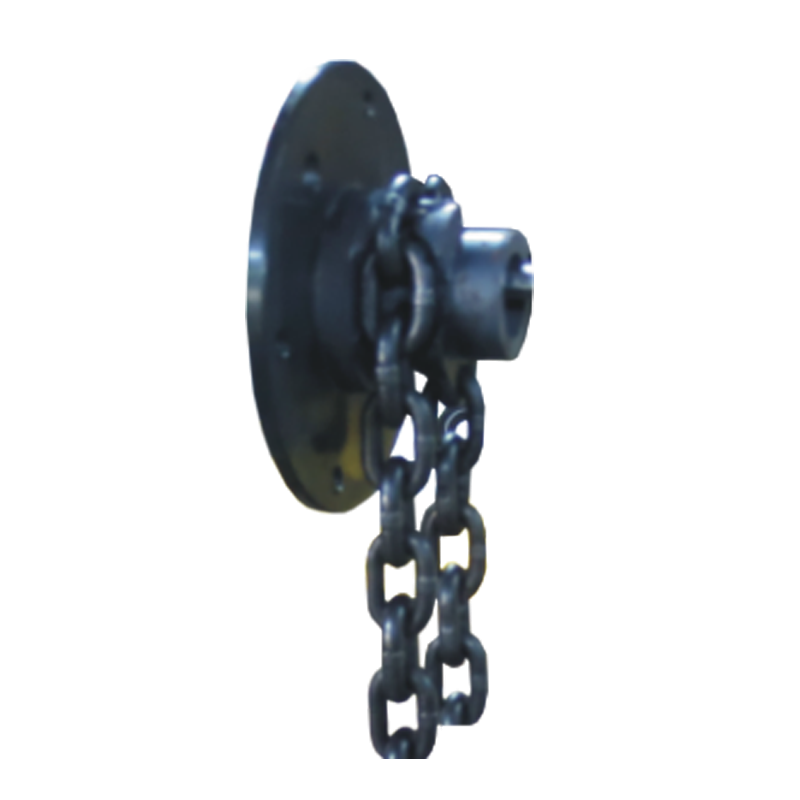

Load sheave / chain guide
Full floating chain guide assures proper engagement of chain on load sheave.
Features 4 or 5 pockets for better distribution of the load.

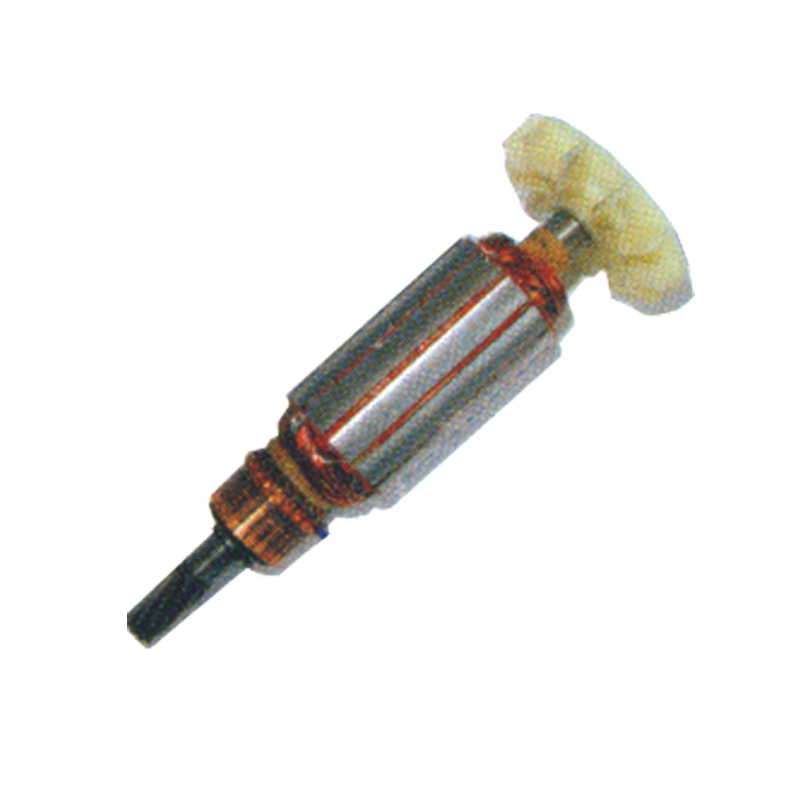

Specially designed mini-brush motor that has a long lifetime and low shakiness; also allows for high speed operation,

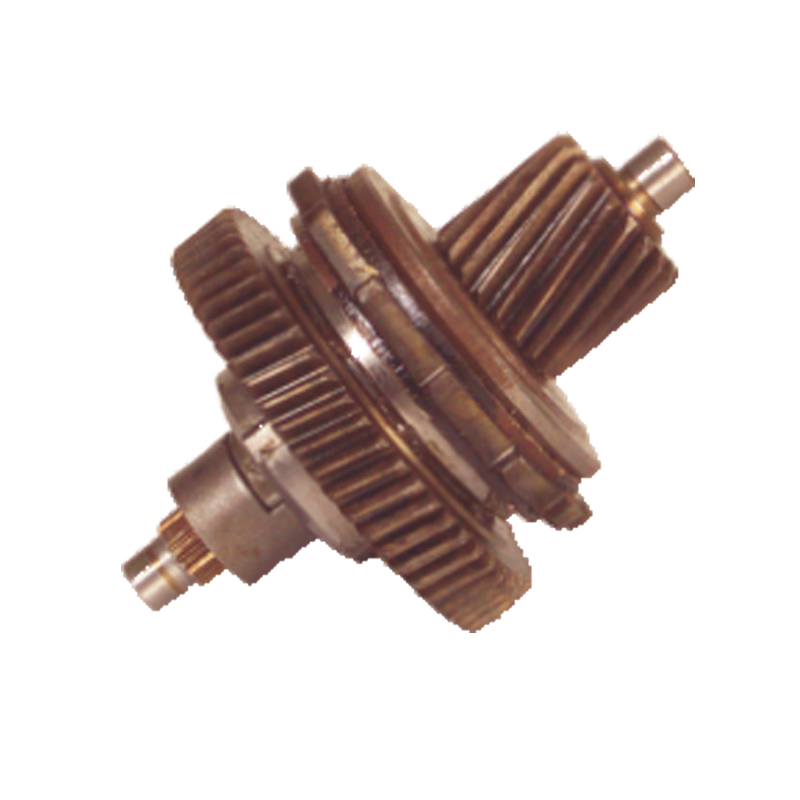

Gear box / Oil Lubrication
Special clutch box-automatically switch to dry-run for over load (Exceeding maximum or minimal Limit ) and stop the up and down operation.
Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
Housing: Lightweight, cast aluminum alloy
Friction clutch: A high performance and durability friction clutch that is integrated with the lode brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
Chain:Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.
Loading sheave: Provide smooth lifting, reduce vibration and wear.
Gearing:Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
Chain bag: The vinyl chain bag container is provided standard with hoist.
Switch: Simply layout of the control with 3M power cable as standard and
emergency stop as potion.
Fit for various workplace applications, such as general factories, warehouse construction, plumbing, and agriculture industries.
Designed for unique rigging applications encountered at small venues, lightweight, quiet ,and portable. Operates on 110V-120V or 220V-230V, which means you can plug it in just about anywhere
|Model||Load||Speed||Motor||Voltage||Lift||Chain||Chain falls line||Braking methods||Reversal||Rating||Net weight||Gross weight|
|CH-300||300kg||12M||1400w||100-120V 220-240V 50/60HZ||3 (6)||Φ6.3×19.1||1||Electromagnetic brake mechanical brake||30%ED||150 loop/time||20||24|
